High-precision Curved guide rail can curved linear motion system form China factory

High-precision Curved guide rail can curved linear motion system form China factory

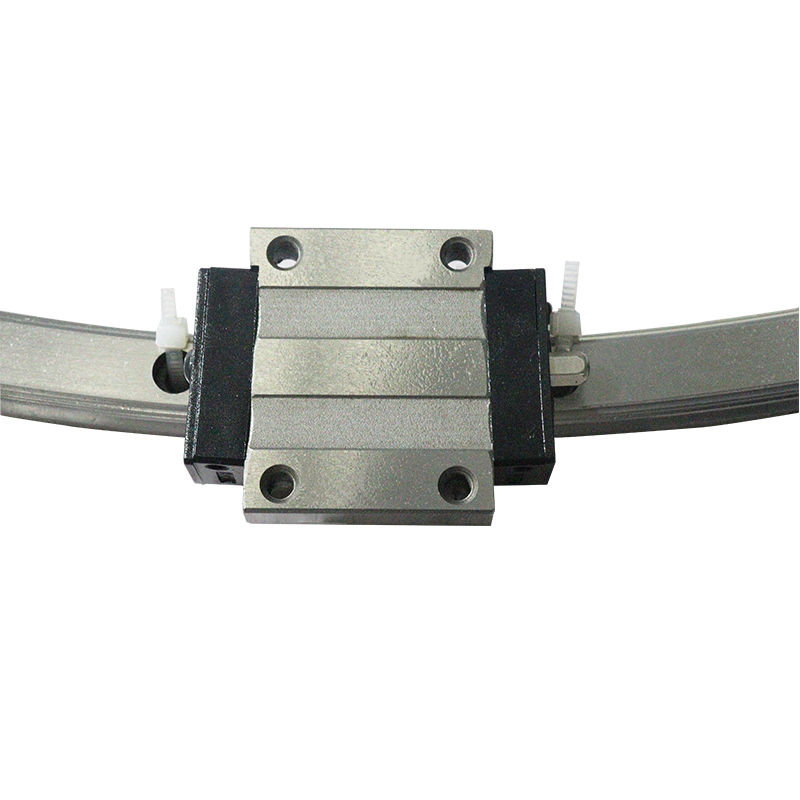

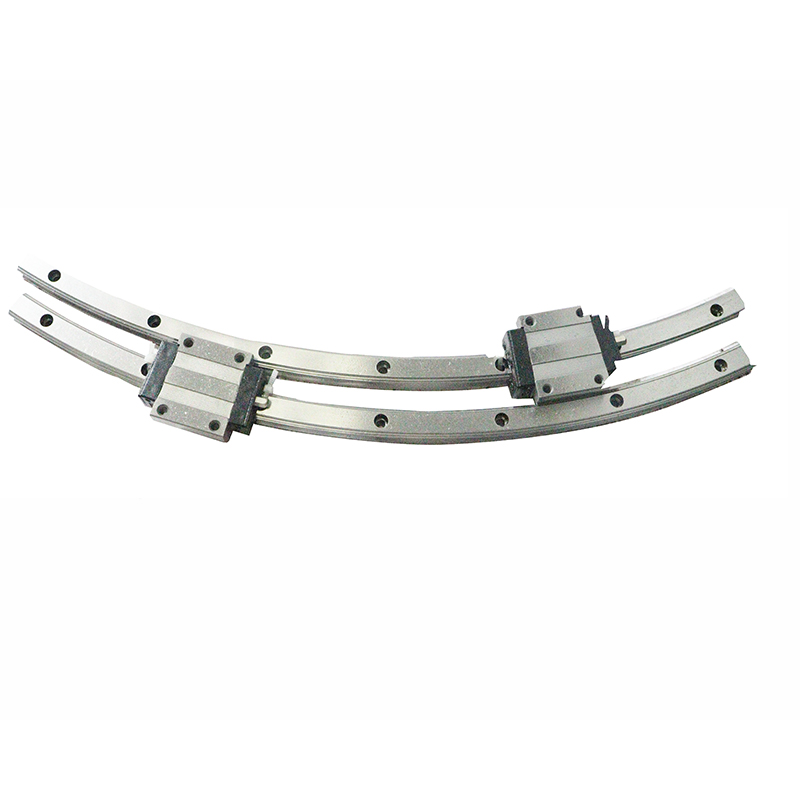

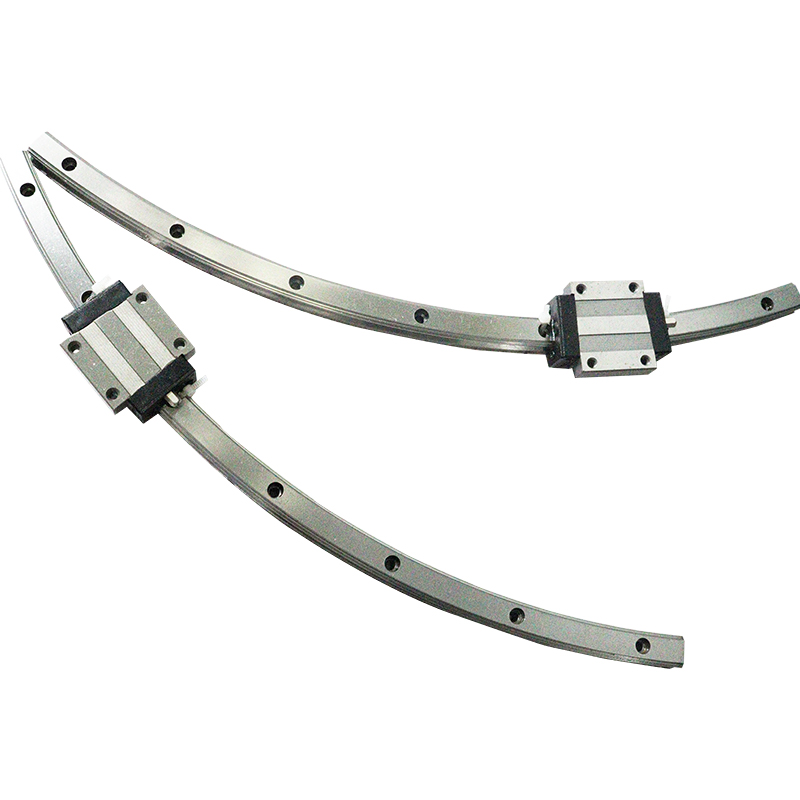

A curved guide rail is a guide structure with a curved shape used to guide a moving device. It is usually used by railway companies and rail vehicle manufacturers in railway systems to ensure that trains maintain stable operation when turning. The curved guide rail allows the train to run in a curve with a certain radius, making the train operation safer and smoother.





Product Name Curved Linear Guide
Model Number Customized according to drawings
Material According to customer needs
Application Automatic System
Delivery 5 days
Feature High precision、High speed、Low noise



New Products
  • Description

Specification



Specification Value
Slider Specifications 15
Rail radius(mm) 400
Flange Integral
Lead Accuracy C3
Blocks 2
R Center Angle 60



Product Features



  • High load capacity
  • High speed
  • Low noise
  • Compact design
  • Options:

       - Tough steel series

       - Sealing performance

       - Long life technology



Condition Description



  • High Accuracy
  • High Load
  • High Speed
  • Low noise
  • Compact Environment
  • Automation



Benefits



  • Optimised Groove Shape
  • Special TF heat treatment
  • Longer Life
  • Expands design possibilities for more compact or longer-lasting machines



Pictures
