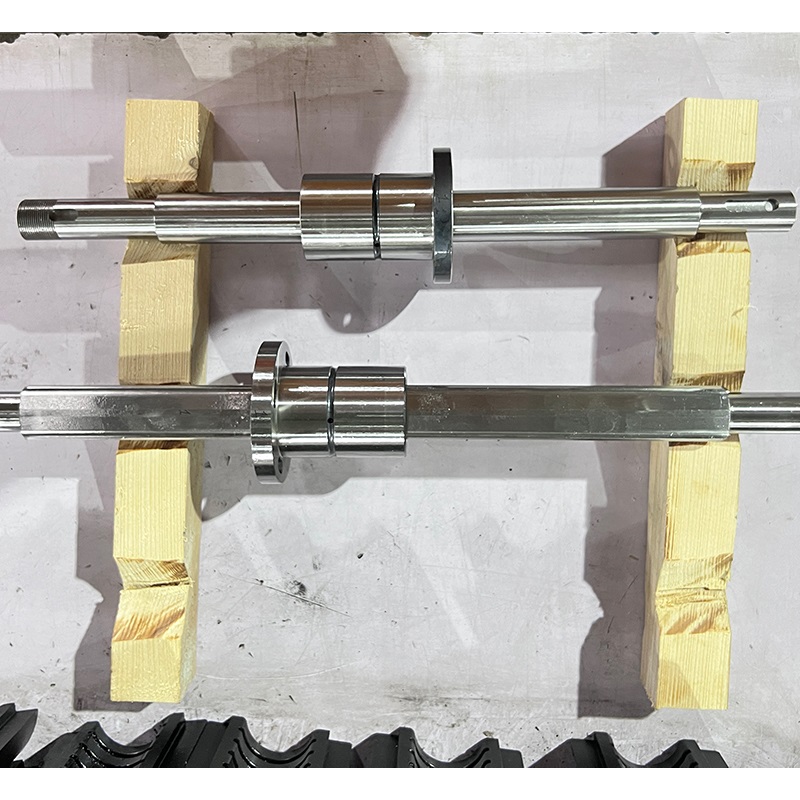

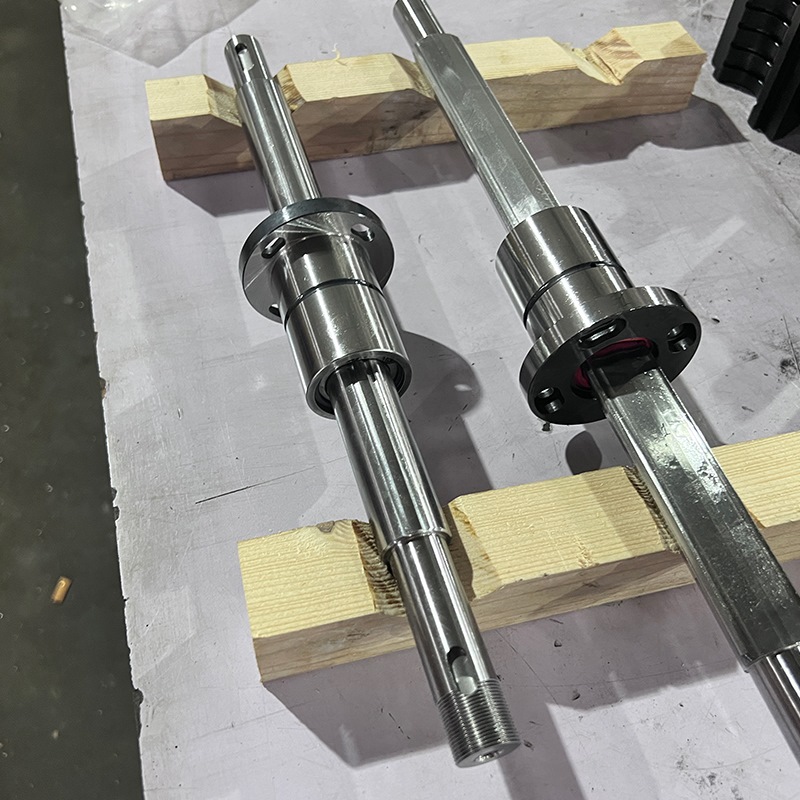

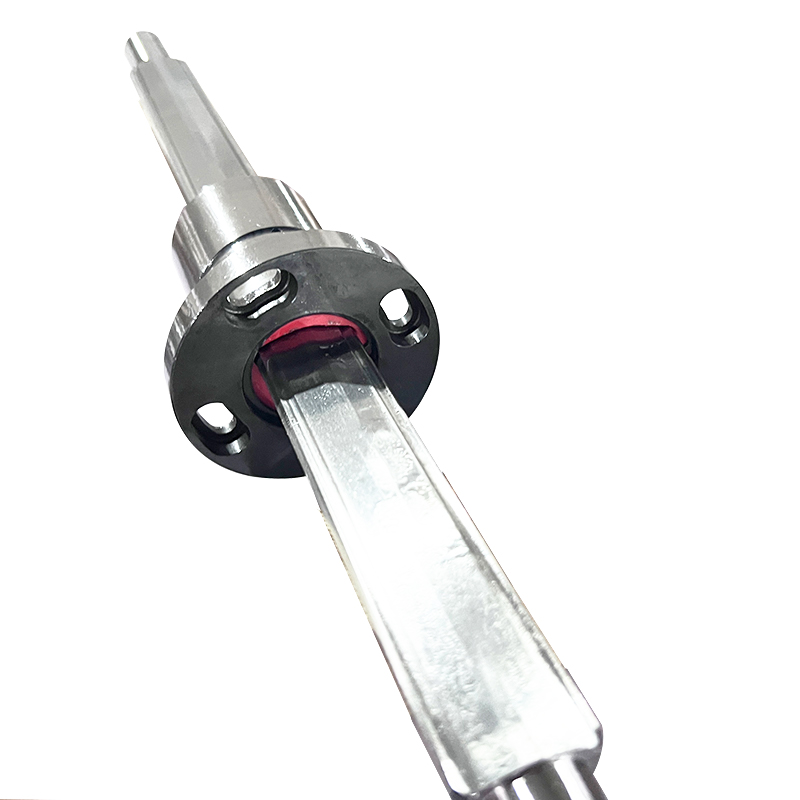

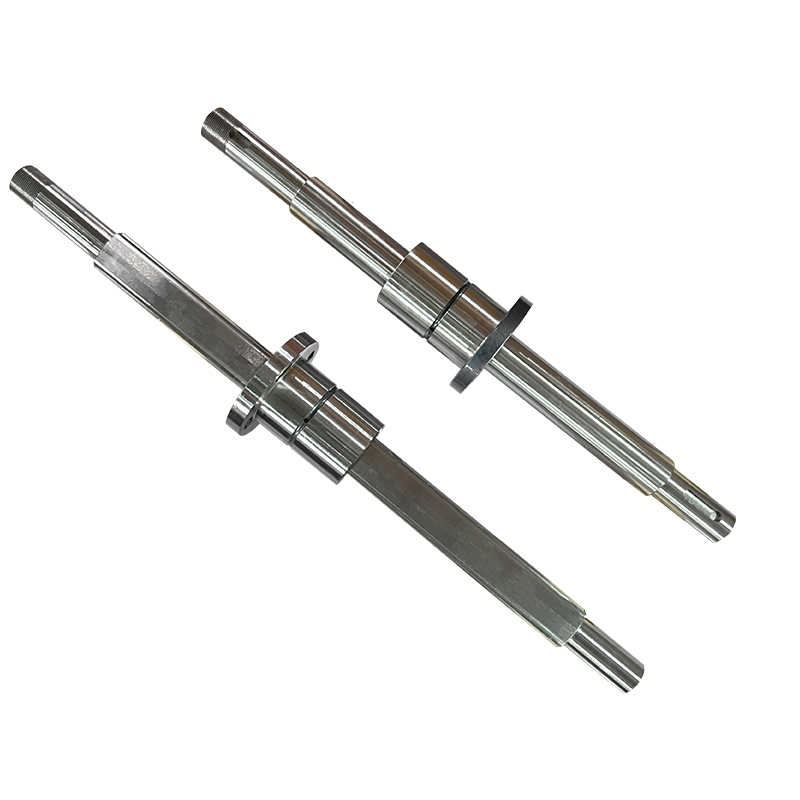

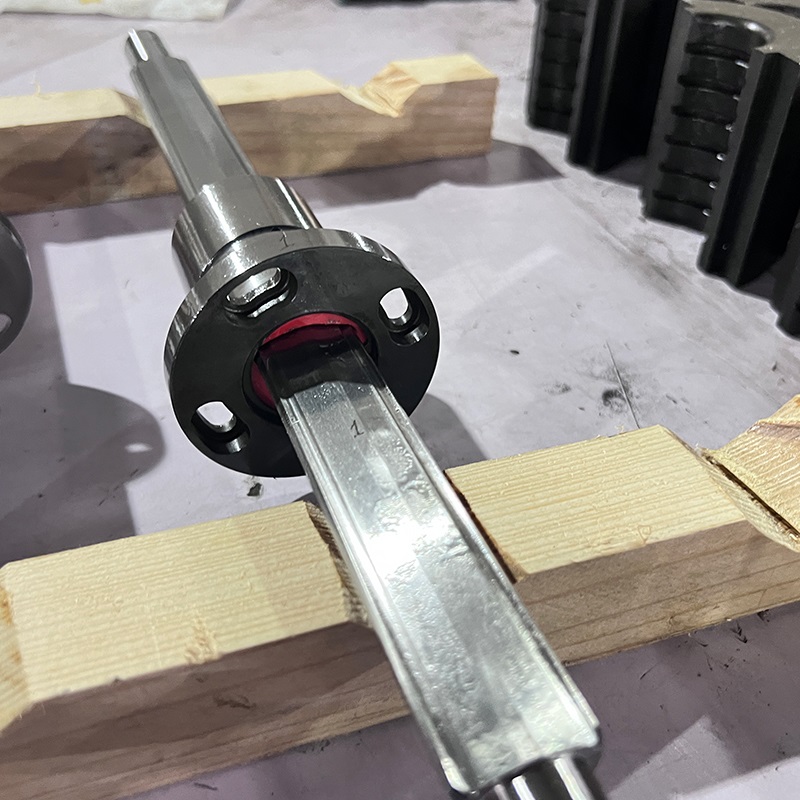

The ball screw/spline contains the ball screw grooves and the ball spline groove crossing one another. The nuts of the ball screw and the ball spline have dedicated support bearings directly embedded on the circumference of the nuts.The ball screw/spline is capable of performing three (rotational, linear, and spiral) modes of motion with a single shaft by rotating or stopping the spline nut.
Product Name | Spline Lead Screw |
Model Number | Customized according to drawings |
Material | According to customer needs |
Manufacturing Process | Rolled screw, Ground screw |
Delivery | 14 days |
Feature | High precision、High speed、Low noise、High efficiency |
Specification | Value |
Diameter | 25 |
Lead | 05 |
Flange | Integral |
Thread Direction | Right Hand |
Lead Accuracy | C5 |
Starts | 1 |
Material | GCr15 Bearing steel |
Thread Type | Grinding |
