The ball screw/spline contains the ball screw grooves and the ball spline groove crossing one another. The nuts of the ball screw and the ball spline have dedicated support bearings directly embedded on the circumference of the nuts.The ball screw/spline is capable of performing three (rotational, linear, and spiral) modes of motion with a single shaft by rotating or stopping the spline nut.
| Product Name | Ball Screw |
| Model Number | Customized according to drawings |
| Material | According to customer needs |
| Manufacturing Process | Rolled screw, Ground screw |
| Delivery | 14 days |
| Feature | High precision、High speed、Low noise、High efficiency |

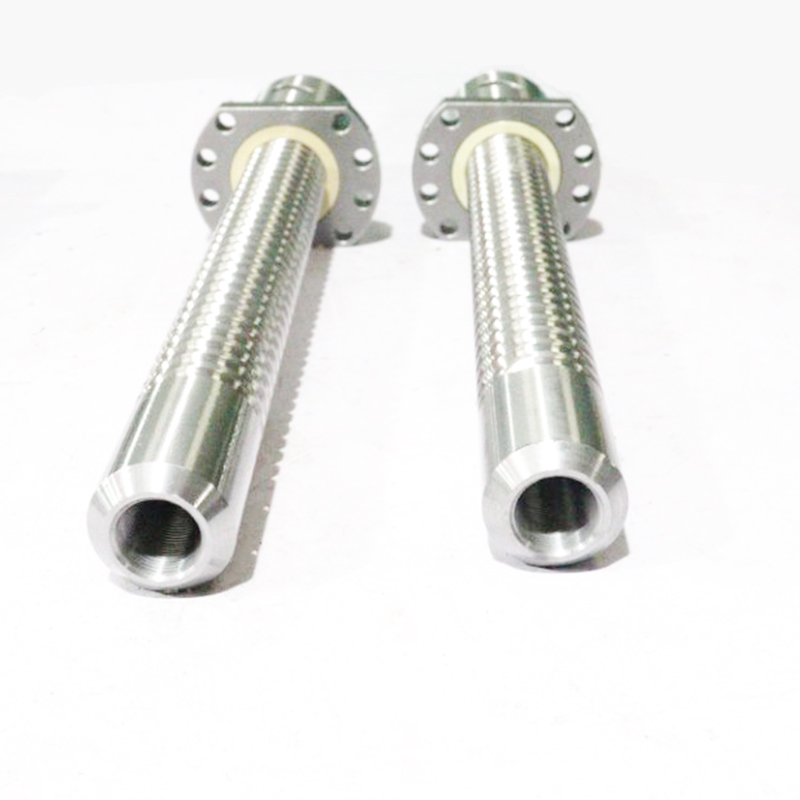

Hollow ball screws are mainly used in the following fields because of their internal characteristics such as shafts, wiring or coolant:
1. High dynamic precision equipment
Industrial robots: Robot arm joint drive, hollow structure facilitates internal wiring (such as motor cables, encoder signal lines), reducing external interference.
2. Automation and measuring instruments
Laser cutting machine: The light beam is transmitted through the center hole of the screw to avoid external obstruction and improve processing accuracy.
3. Medical and optical equipment
Surgical robots: The hollow channel can be integrated with endoscopes or liquid delivery tubes to meet the requirements of sterile environment.
4. Aerospace and military industry
Missile guidance mechanism: Use hollow structure for wiring to adapt to compact space.
5. Special environment applications
Vacuum equipment: Coolant (such as liquid nitrogen) is passed inside to reduce thermal deformation, used in vacuum coating machines.
Clean room: Avoid external contamination, suitable for LCD panel handling.
| Specification | Value |
| Diameter | 32 |
| Lead | 10 |
| Flange | Integral |
| Thread Direction | Right Hand |
| Lead Accuracy | C3 |
| Starts | 1 |
| Material | GCr15 Bearing steel |
| Thread Type | Grinding |
The processing of ball screw products includes the following steps:
1. Material selection: Select high-quality metal materials, such as high-quality alloy steel, for the main part of the ball screw.
2. Turning: Use a lathe to turn the metal material. First, fix the metal material on the lathe and use a cutting tool to gradually cut the material into a cylindrical work piece. This step ensures that the ball screw has a precise diameter and length.
3. Screw thread processing: Screw thread processing is performed on the outer surface of the ball screw. This requires the use of a thread tool to cut the thread line onto the ball screw so that it can be matched with other equipment.
4. Steel ball processing: Make steel balls of suitable size for rolling movement between the ball screw and the slider. Steel balls are usually made of metal materials and are precisely sized through processing processes such as grinding.
5. Assembly: Assemble the various components of the ball screw. It mainly includes placing the ball screw into the guide rail and ensuring that the steel ball is correctly assembled into the raceway between the ball screw and the slider.
6. Debugging and quality inspection: After assembly, the ball screw needs to be debugged and quality inspected. This includes checking the rolling smoothness, measuring the accuracy and size of the screw, and verifying the quality and performance of the entire ball screw system.
7. Surface treatment: As needed, the ball screw can be surface treated, such as chrome plating, blackening, etc., to improve its wear resistance and corrosion resistance.
